ENSAVE · WALL SERIES
22 kW · Socketed AC charging

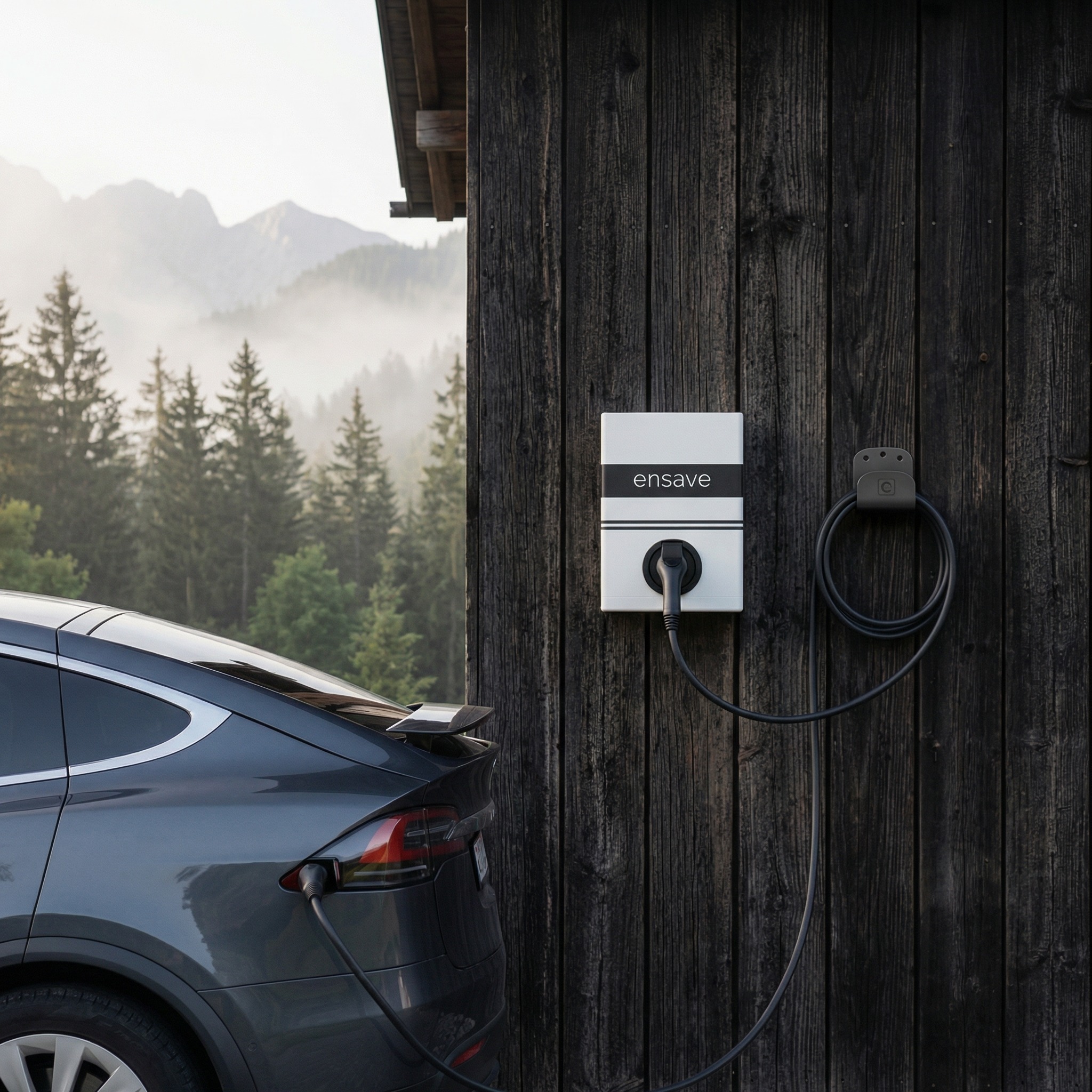

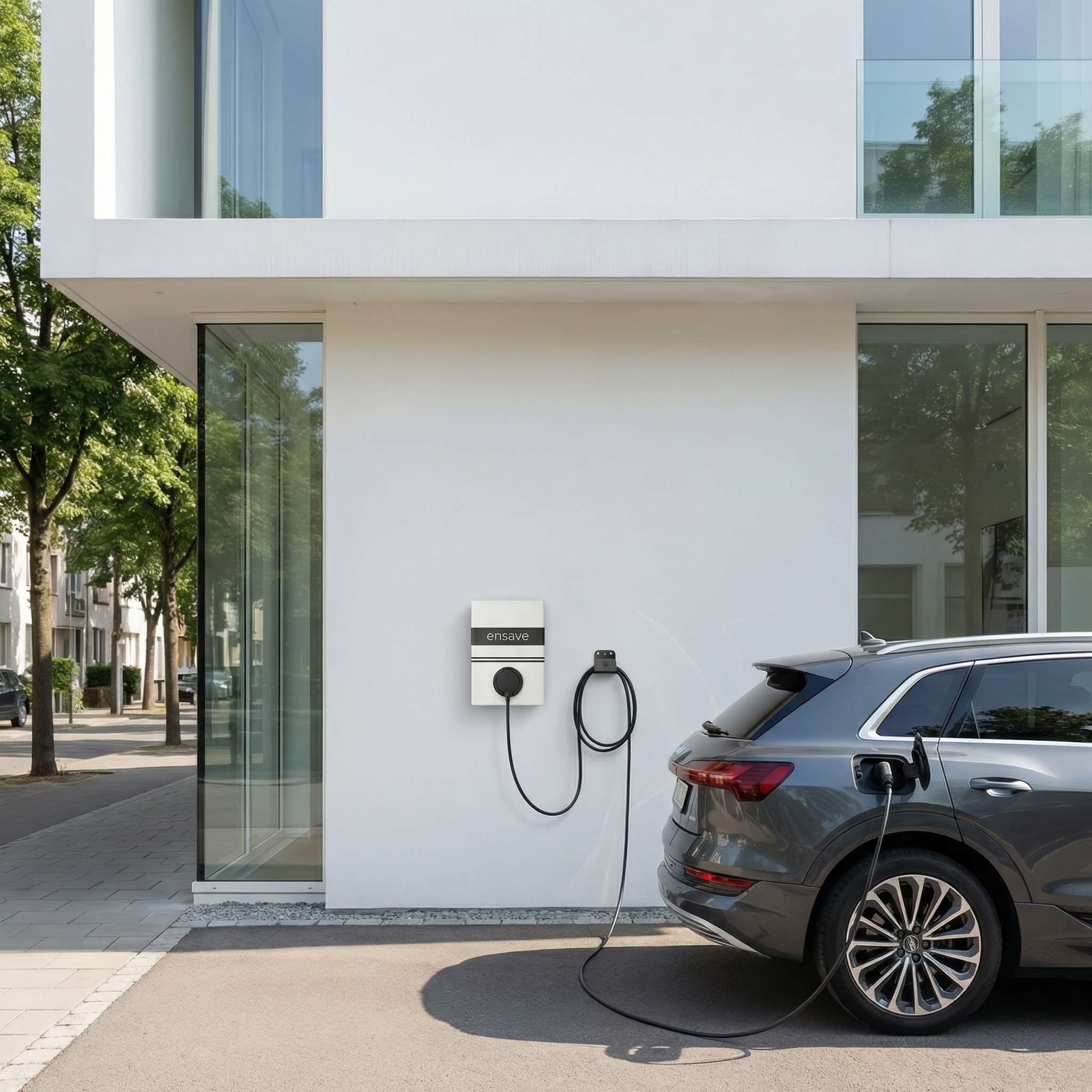

The Ensave WALL22-S is a 22 kW wall-mounted electric vehicle charger. Its Type 2 socket is designed for use with a separate charging cable.
It is designed for a 400 V three-phase supply with a maximum current of 3×32 A. The installation location and electrical infrastructure should be assessed together when selecting a charger.
Technical specifications
| Charging power | 22 kW AC |
|---|---|
| Power supply | 400 V, three-phase |
| Maximum current | 3×32 A |
| Connection | Type 2 socket; separate user-supplied cable |
| Connectivity | Wi-Fi + BLE; optional RFID |
| Meter | Wi-Fi + BLE controlled; optional |
| Dimensions | 25×35×15 cm |
| Mounting | Wall or optional pedestal |
| IP rating | IP54 standard; IP65 optional |
| Recommended supply cable | At least 5×6 mm² |
| Residual current protection | RCD Type A + 6 mA DC |
| Protection features | Overcurrent, short circuit, overheating and overvoltage |
| Enclosure | Electrostatically powder-coated metal |
| Impact resistance | IK08 |
| Operating temperature | -25 °C – +50 °C (typical) |
When should you choose a socketed charger?
The Type 2 socket suits users who prefer a separate charging cable. Consider cable compatibility and the distance between the charger and the vehicle when planning the installation.
Mounting and connectivity options
The WALL22-S can be wall-mounted or installed on an optional pedestal. It supports Wi-Fi and BLE connectivity, with RFID available as an option. Standard and optional equipment will be confirmed in your quotation.
Frequently asked questions
What power supply does the WALL22-S require?
The technical specifications require a 400 V three-phase supply. Site conditions must be assessed by a qualified installation team.
What type of connection does it use?
Its Type 2 socket is designed for a separate charging cable.
How can I request a quote?
Use the Add to quote request button to add this model to your list. You can select other products before submitting your request.
